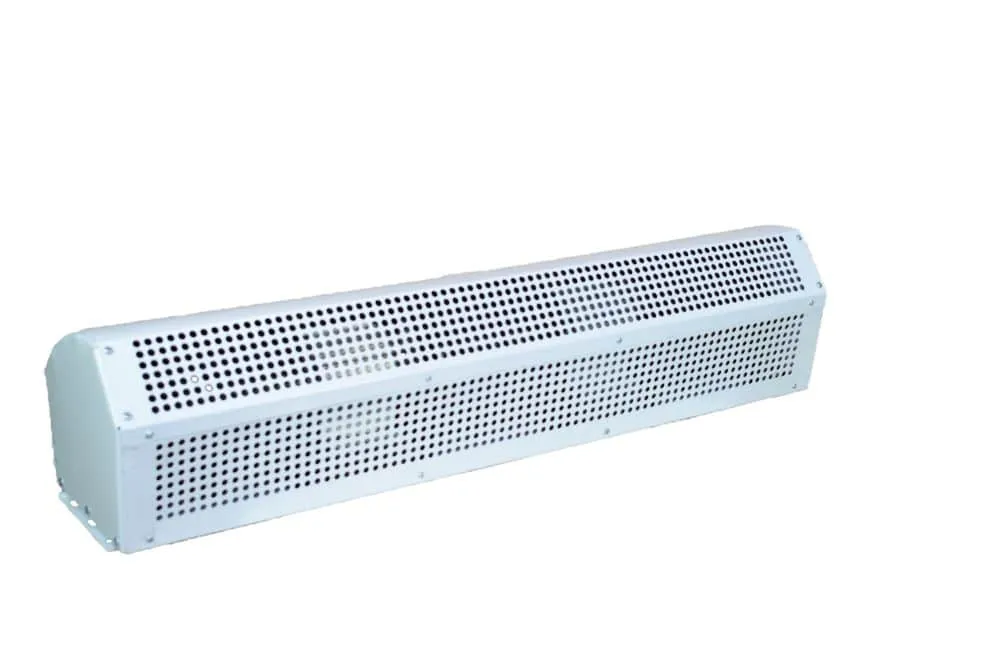

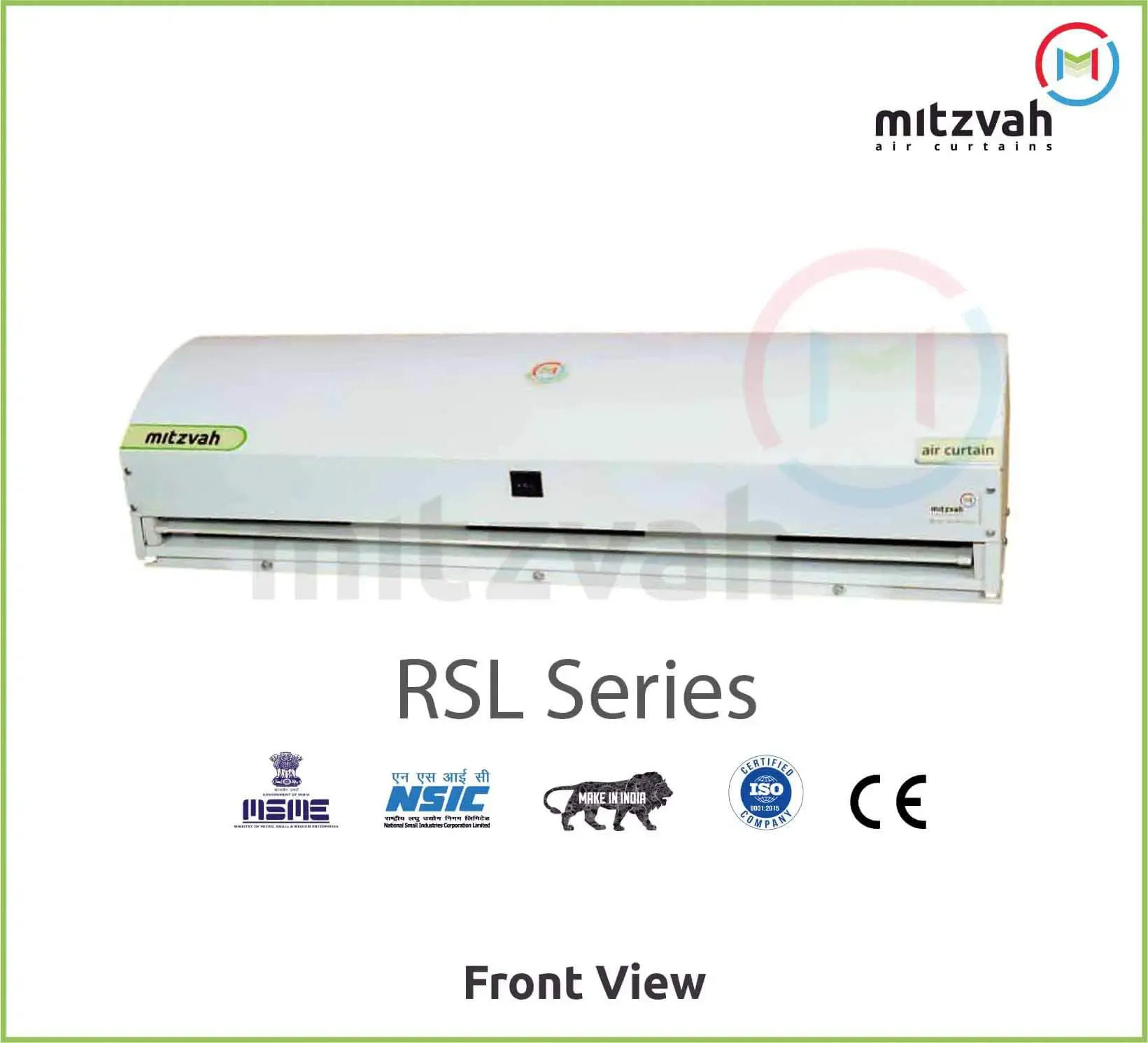

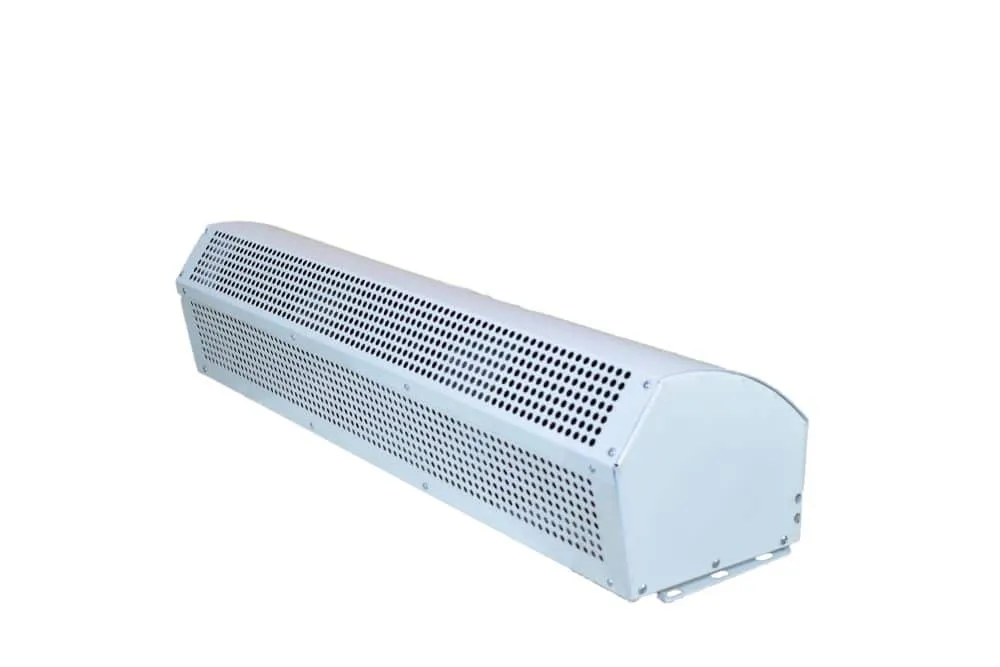

Mitzvah Air Curtains RSL Series

₹18,000 - ₹62,900+ GST

Size :Select Size

Volt :Select Volt

SKU: RSL-Series

₹18,000+ GST

SKU:RSL-Series

Product Features

Length : 2 feet ~ 7 feet
Height Covered : Upto 10 feet
Max Velocity : High 23 m/s, Low 16 m/s
Curved Look Sleek Model
Finish : Hair Line Stainless Steel
Top Suction
24X7 Operations
Robust Construction
Front Body in Stainless Steel Grade 304
High Gloss Powder Coated Chassis
Silent Air Curtain
Volt: 220 V; Single Phase, 50 Hz , 220 V; Single Phase, 60 Hz, 440 V; Three Phase, 50 Hz

Size	1 Meter, 2 Feet, 3 Feet, 4 Feet, 5 Feet, 6 Feet, 7 Feet
Certifications	ISO 9001:2015, CE
Volt	220 V; Single Phase, 50 Hz, 220 V; Single Phase, 60 Hz, 440 V; Three Phase, 50 Hz
Height Effective	Upto 10 feet
MOC Main Base Plates	Main and Base Plates are constructed in Galvanised steel with powder coated finish
Chassis	Metal Powder Coated
Fan Type	Centrifugal
Max Velocity Nozzle	21m/s (High) / 16m/s (Low)
Flow Type	Non – Recirculating
Colour	White
Of Motors Wattage	#1 @ 120W
MOC Winding	Copper
MOC Motor Shell	Aluminium
Air Volume CMH	Air Volume : (H) 1000 CFM ; (L) 725 CFM
Operation Control	Dual Speed Switch
Aesthetic Look	Plain Curved Surface Top Suction
MOC Suction Grills	Stainless Steel 304
Part Warranty	3 Years
Of Blowers	3
Socket	Type D
Outer Body Visual-look	Stainless Steel 304
Sound Level DB 'A' Scale	58
RPM	2800
Speed Variation	2 Speed Operation, (High / Low)
Suction Side	Top
Wattage	120 W
